Description

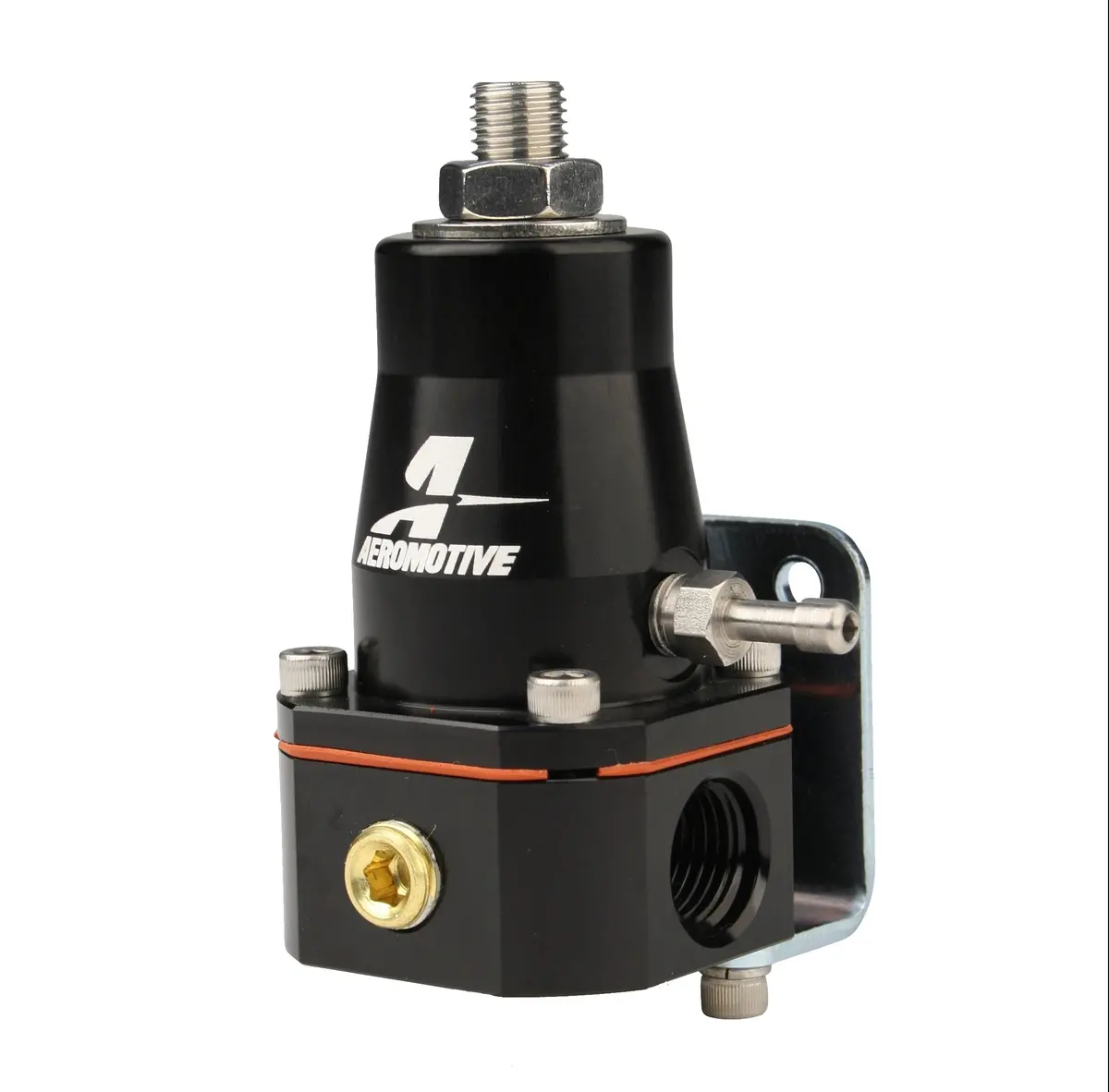

Carbureted return style Regulator for Return Style Systems
- Base fuel pressure adjustable from 3-20 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for blow-through carburetors.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 – ORB -08 inlet/outlet ports on the sides.
- 1 – ORB-08 return port on the bottom port.
- 1 – 1/8″ NPT Gauge Port with plug.
- 1/16″ NPT Boost Port with 5/32″ hose barb.
- Compatible with both X1 EFI Conversion kits.
- 0.313″ return style with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive pump up to A1000.
- Mounting bracket included (not shown).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
P/N 13014 150 GPH 0.313″ Carb Service Kit
P/N 13013 150 GPH 0.188″ EFI Conversion Kit
P/N 13015 250 GPH 0.313″ EFI Conversion Kit
