Camburg Race Series Lift & Travel Suspension Kit For Toyota 4Runner (2010–2023) And Fj Cruiser (2010–2014) – Includes Heim Joint Upper Control Arms

Description

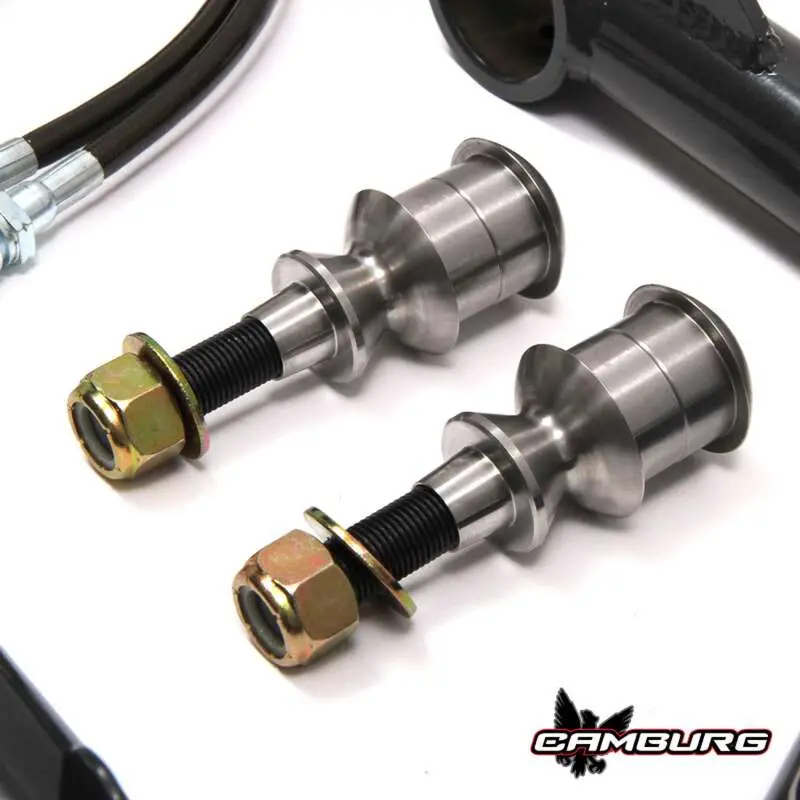

The Camburg Long Travel kit features high-performance A-Arm components. The lower arm includes uni-balls in the lower frame pivots and a uni-ball lower ball joint replacement. The upper arm pivots on urethane bushings with zerk fitting and 1.250″ race uni-balls. The kit also includes heat-treated stainless steel adapters to connect the uni-ball to the spindle. The system utilizes Camburg SPEC 8″ travel 2.5″ reservoir coilovers by FOX or King, allowing for up to 15″ travel on a 2×4 and 14″ on a 4×4. The system can be upgraded with a weld-on bypass shock mount and a custom FOX or King 2.5″ 3 tube bypass shock. This kit is designed for trail running, desert racing, or off-road exploration. It is recommended to have it installed by a reputable off-road shop familiar with these types of products. Fiberglass front fenders need to be installed with this suspension system. RWD models can run a coilover, bypass shock, and air bump stop, while 4WD models can run a coilover and air bump stop or coilover and bypass shock. This kit fits non-KDSS equipped models only. Shock specs include a 2.5 x 8″ remote coilover, 16″ x 500-600 lb coils, 23.9″ extended length, 16″ collapsed length, tapered/raised lower spring seat, 2″ longer lower rod end, 1.25″ width shock spacers, and a 90-degree res. fitting on the shock.

Installation Instructions

This Part Fits:
