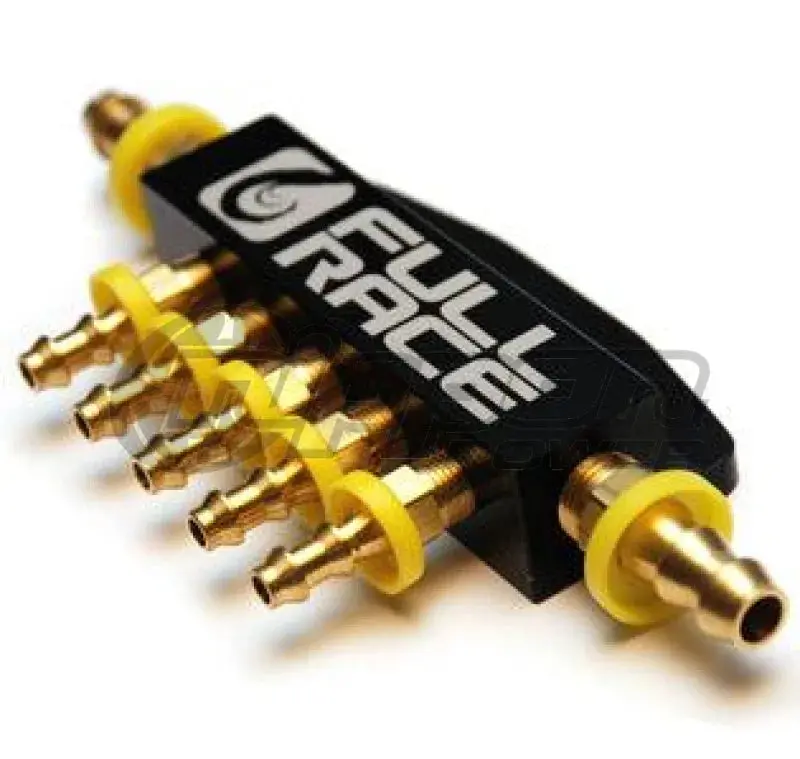

Full Race Billet Vacuum and Boost Reference Manifold Block — Universal Mounting

Description

Full-Race’s billet aluminum vacuum / boost reference billet distribution block is made to simplify your boost and vacuum lines for an aesthetically pleasing installation. The design allows the CNC machined Vacuum / Boost Reference Distribution block to be mounted in hundreds of different engine bay locations depending on your application.

This manifold is CNC machined from 6061 aluminum with 7 NPT ports providing you with many different options for line routing, making this boost reference block the ideal solution for any vehicle requiring a boost or vacuum reference. This works great for plumbing to your boost reference fuel pressure regulator, manifold pressure wastegates, boost gauge, blow-off valve, map sensor, boost controller, wastegates, brake booster, and many other applications.

Vacuum / Boost Signal Connection Examples

• Fuel pressure regulator
• Boost gauge
• Wastegates
• Blow off valve
• Boost controller

Applications

• Universal, fits all applications

Application Notes

Full-Race recommends referencing the wastegate manufacturer’s installation instructions before connecting vacuum lines to the wastegate. Some manufacturers require that the wastegate diaphragm only reference boost or positive pressure.

Includes

• (1) Vacuum Block
• (2) 1/4 NPT to 3/8 barb fittings
• (5) 1/8 NPT to 1/4 barb fittings
