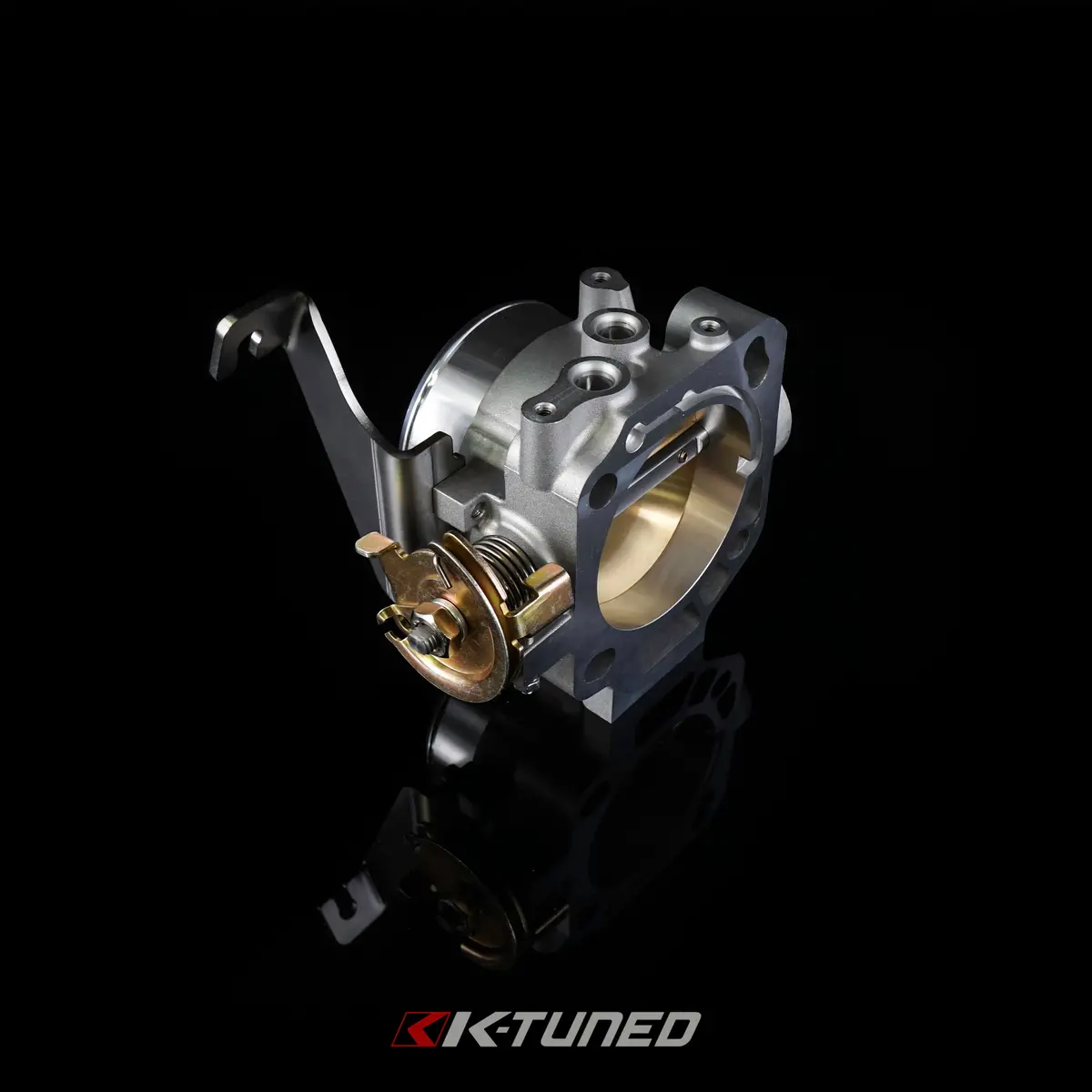

K-Tuned 70mm Dual-Bolt-Pattern K-Series Throttle Body Compatible with PRB/RBC – Includes Bracket – Model Ktd-70K-Db2

Description

Applications:

• Dual bolt pattern PRB/PRC and RBC/RRC intake manifold

Features:

* Dual Bolt Pattern PRB and RBC
* TPS, IACV, MAP and Evap Provisions
* Adjustable Spring Pressure

Notes:

* Our K-Tuned Throttle Cable should be used with K-Tuned TB’s. In most cases the stock cable will NOT be the correct length
* Uses sensors from 2002 RSX Type S
* All Hardware, Gasket, and throttle bracket included
* IACV can be plugged with supplied 1/8NPT plugs

Specifications:

Our cast throttle body is designed to be a great budget option for someone looking for a throttle body larger than stock. Direct fit for PRB/PRC and RBC/RRC manifolds. We have redesigned them to an OEM style throttle wheel to keep cost down as well as incorporated a stiffer spring to give the throttle a better ‘snap’ when closing.

Fitment:

Acura RSX
02-06 Acura RSX Base 2.0 K20A3
02-04 Acura RSX Type S 2.0 K20A2
05-06 Acura RSX Type S 2.0 K20Z1
Honda Civic
02-05 Honda Civic Si 2.0 K20A3

*Also fits K-Swap with PRB/PRC and RBC/RRC intake manifold
