Precision Turbo PT6266 CEA Gen1 Journal-Bearing Turbocharger

Description

Street and Race Turbocharger – PT6266 CEA
HP Rating: 735HP
(Horsepower rating are to the crank. Numbers will vary due to size and displacement of engine.)
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering a 30-45 horsepower increase over similarly sized turbine wheel equipped turbos, the PT6266 CEA® is the perfect choice for those wanting to make more power without changing their current system.

PTE’s PT6266 Turbocharger features the following:

• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
• Compressor cover “Ported S” compressor cover 4.0″ inlet/2.5″ outlet
• Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
• Turbine housing T3, T4, V-Band In/ Out with 3″ OD (outer diameter) V-Band discharge
• Precision customers have a history of setting records and getting noticed. They don’t sit in the stands watching the action they’re the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.

Recommended Flanges and Clamps:
T3 Inlet/ V-Band Outlet

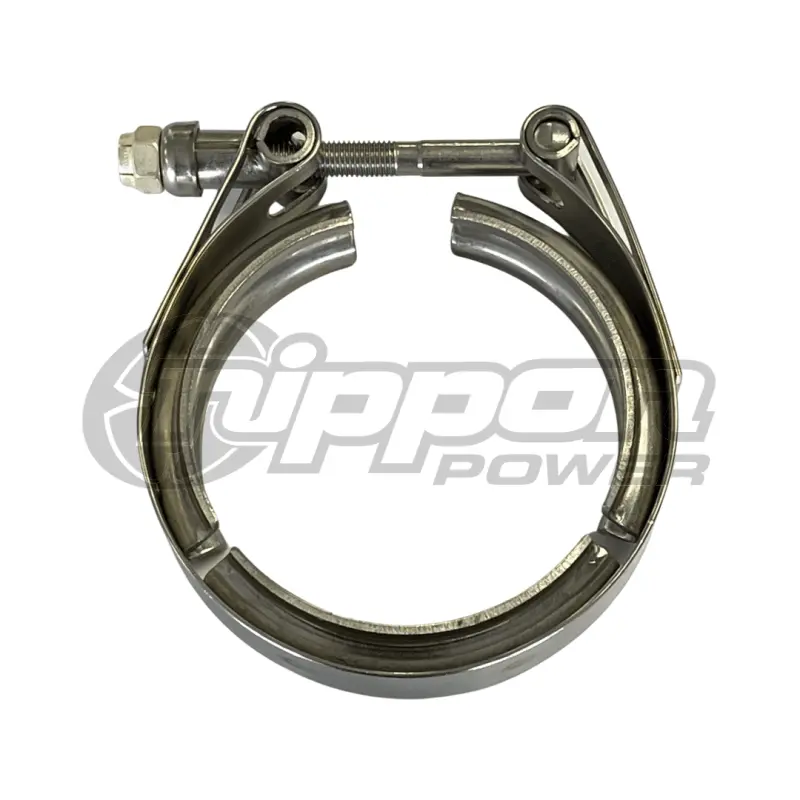

Outlet Clamp – 071-1027 (Not Included)
SS Outlet Flange – 074-3012 (Not Included)

T4 Inlet/ V-Band Outlet
Outlet Clamp – 071-1029 (Not Included)
SS Outlet Flange – 074-3036 (Not Included)
V-Band In/Out Outlet
Inlet Clamp – 071-1027 (Not Included)
SS Inlet Flange – 074-1030 (Not Included)
Outlet Clamp – 071-1029 (Not Included)
SS Outlet Flange – 074-3050 (Not Included)
